Lithium Coin Battery CR1216 is a lithium metal battery. It uses lithium metal as an electrode and generates electrical energy by chemically reacting with it.
Among them, CR1216 is its model, CR represents the chemical type of the battery, namely manganese dioxide, and 1216 represents the size of the battery (the first two digits represent the diameter, and the last two digits represent the thickness). In other words, the diameter of this button battery is 12.5mm and the thickness is 1.6mm. Its nominal voltage is 3V, the average weight is 0.7 grams, and it can work in an environment of -30℃-60℃.
Lithium coin battery (also known as button battery), as the name suggests, looks like a coin (button), round and flat. Therefore, it is very light and durable.
Its structure is not complicated, it mainly consists of positive electrode, negative electrode, electrolyte, sealing ring and metal shell.
Lithium coin battery includes many models, in addition to CR1216, there are CR2016, CR2032, CR2025, etc. For the parameters and specifications of commonly used lithium coin batteries, you can refer to the table below.
| Model | Standard Voltage(V) | Standard current(mA) | Standard Capacity(mAh) | Maximum Pulse Current(mA) | Diameter(mm) | Thickness(mm) | Operating Temperature(℃) |
| CR920 | 3 | 0.1 | 25 | 5 | 9.5 | 2 | -30℃-60℃ |
| CR927 | 3 | 0.1 | 32 | 3 | 9.5 | 2.7 | -30℃-60℃ |
| CR1025 | 3 | 0.1 | 30 | 5 | 10 | 2.5 | -30℃-60℃ |
| CR1212 | 3 | 0.1 | 20 | 5 | 12.5 | 1.2 | -30℃-60℃ |
| CR1216 | 3 | 0.1 | 24 | 5 | 12.5 | 1.6 | -30℃-60℃ |
| CR1220 | 3 | 0.1 | 40 | 5 | 12.5 | 2 | -30℃-60℃ |
| CR1225 | 3 | 0.1 | 50 | 5 | 12.5 | 2.5 | -30℃-60℃ |
| CR1616 | 3 | 0.2 | 55 | 5 | 16 | 1.6 | -30℃-60℃ |
| CR1620 | 3 | 0.2 | 70 | 5 | 16 | 2 | -30℃-60℃ |
| CR1632 | 3 | 0.2 | 125 | 10 | 16 | 3.2 | -30℃-60℃ |
| CR2016 | 3 | 0.2 | 90 | 10 | 20 | 1.6 | -30℃-60℃ |
| CR2025 | 3 | 0.5 | 165 | 15 | 20 | 2.5 | -30℃-60℃ |
| CR2032 | 3 | 0.5 | 240 | 25 | 20 | 3.2 | -30℃-60℃ |
| CR2330 | 3 | 0.5 | 280 | 20 | 23 | 3 | -30℃-60℃ |
| CR2354 | 3 | 1 | 560 | 20 | 23 | 5.4 | -30℃-60℃ |
| CR2412 | 3 | 0.2 | 100 | 5 | 24.5 | 1.2 | -30℃-60℃ |
| CR2430 | 3 | 1 | 300 | 30 | 24.5 | 3 | -30℃-60℃ |
| CR2450 | 3 | 3 | 600 | 50 | 24.5 | 5 | -30℃-60℃ |
| CR2477 | 3 | 1 | 1000 | 20 | 24.5 | 1 | -30℃-60℃ |
| CR3032 | 3 | 1 | 550 | 35 | 30 | 3.2 | -30℃-60℃ |

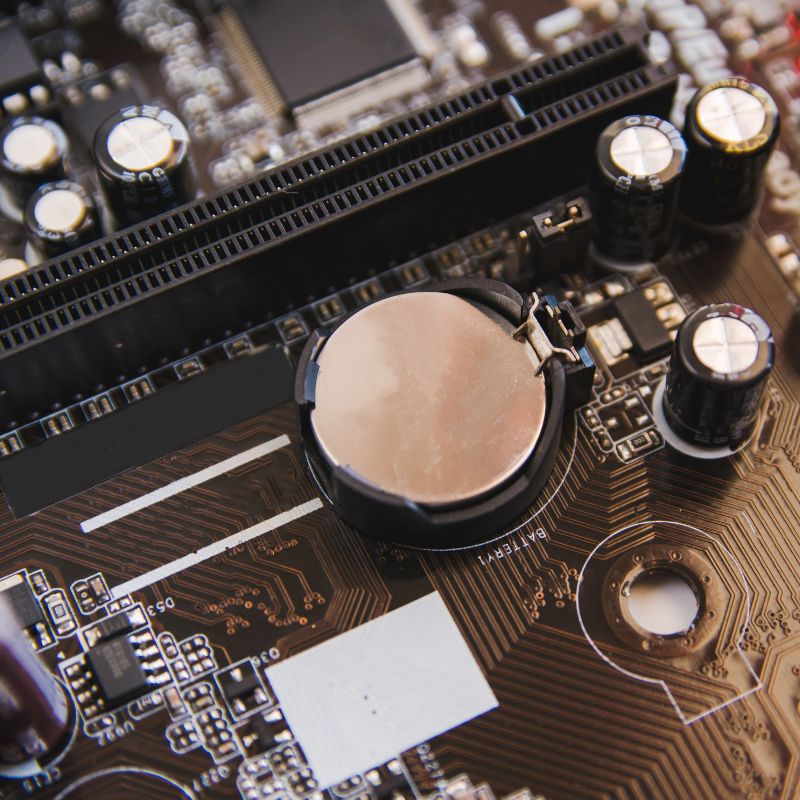

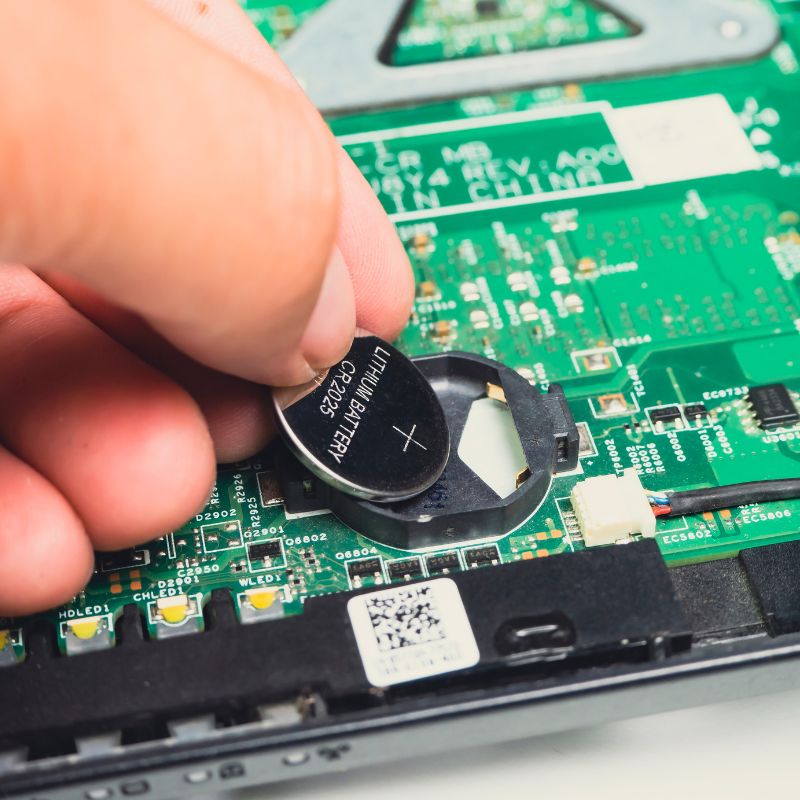

Lithium coin battery is usually used in precision instruments or small devices due to its small size. For example, computer motherboards, watches, anti-theft devices, electronic scales, remote controls, medical equipment, communication equipment, etc.
We have very strict quality control for lithium coin battery. We have a professional quality inspection team, we have laboratories and many equipment. Our batteries will undergo impact test, drop test, vibration test, aging test, high and low temperature test, short circuit test, etc. These tests ensure that the lithium coin battery we produce is of high quality, safe and stable.
At the same time, our quality inspectors will track the entire process of lithium coin battery production, from material selection, manufacturing process, packaging process to before shipment, we will conduct a series of quality inspections and sampling inspections.
Our complete and diverse quality inspection process can ensure that there is no problem with the goods you receive.
All lithium coin batteries we produce meet strict international standards, such as IEC, UN38.3, etc. Our pursuit and commitment to battery quality continues to drive us to make continuous progress in this field.
We have customization capabilities. For lithium coin battery, customization is mainly reflected in the raw materials, capacity, voltage, size, and other parameters of the battery. We can also customize the appearance, color, packaging design, brand logo, etc.
In short, we will try our best to meet the customer’s needs for customization and provide feasible solutions.
In the process of providing battery customization and OEM services for many years, we have developed a set of standard steps and processes. Following this process, the battery customization process will ensure foolproof. Here are the 6 main steps of this process:
1. Consultation and communication
First, you submit your battery customization requirements to us. During this process, our sales team, technical team, and design team will serve you and confirm your requirements in constant communication.
2. Sample manufacturing
We will manufacture samples for you according to your needs.
3. Sample confirmation
The produced samples will be delivered to you within a few days, and you will confirm whether the samples meet your requirements.
4. Mass production
If the sample is wrong, we will continue to adjust it according to your feedback until the sample is correct. If the sample is confirmed to be correct, we will arrange for the factory workshop to carry out mass production, and the battery will be manufactured before the deadline you specify.
5. Delivery
After the battery is manufactured, logistics delivery will be arranged for you, and the goods will usually be delivered to your designated location by sea.
6. After-sales service
After you receive the goods, it does not mean the end. Our after-sales team will follow up on the after-sales situation. You can feedback any problems to us, and we will actively cooperate with you to help you solve after-sales problems until you are satisfied.
Liteway is a Chinese manufacturer specializing in the production of various lithium coin batteries including Lithium Coin Battery CR1216. We have more than 20 years of development history and battery manufacturing/exporting experience. Not only do we have our brand products, but we also produce batteries for customers all over the world. Our manufacturing capabilities have been recognized by many partners.
Our lithium coin battery adopts independent research and development design, and we can also provide battery customization services and OEM services according to customer requirements.
Our batteries will undergo multiple quality inspections during the manufacturing process and then be shipped to the customer’s designated location by sea and air.
Lithium Coin Battery CR1216 is one of our Lithium Coin Battery series. If you want to see other models or want to know more about Lithium Coin Battery, please click here.
If you want to cooperate with us and let us produce and customize batteries for you, please contact us.
