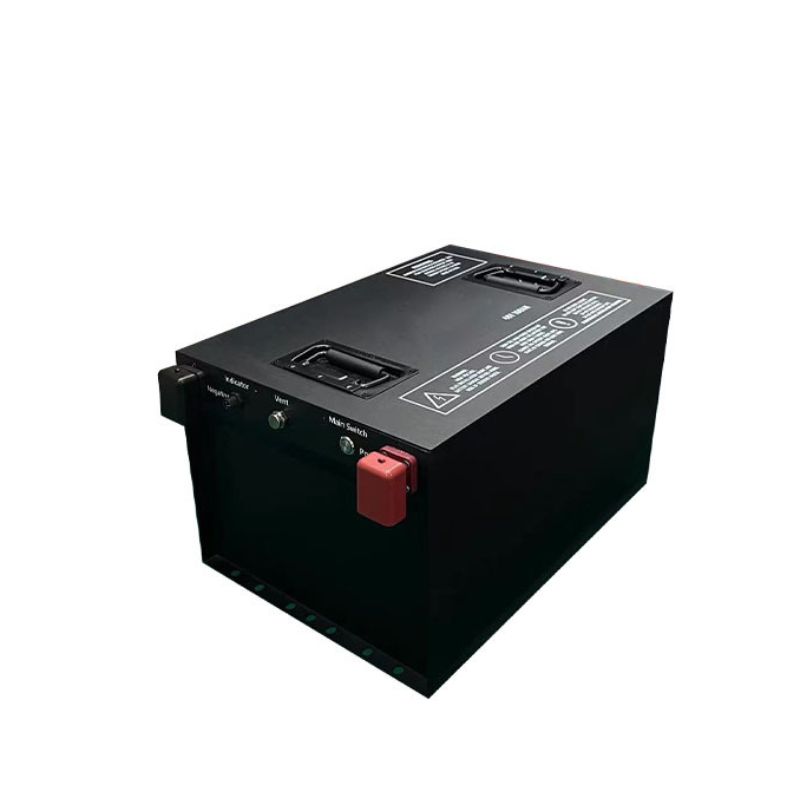

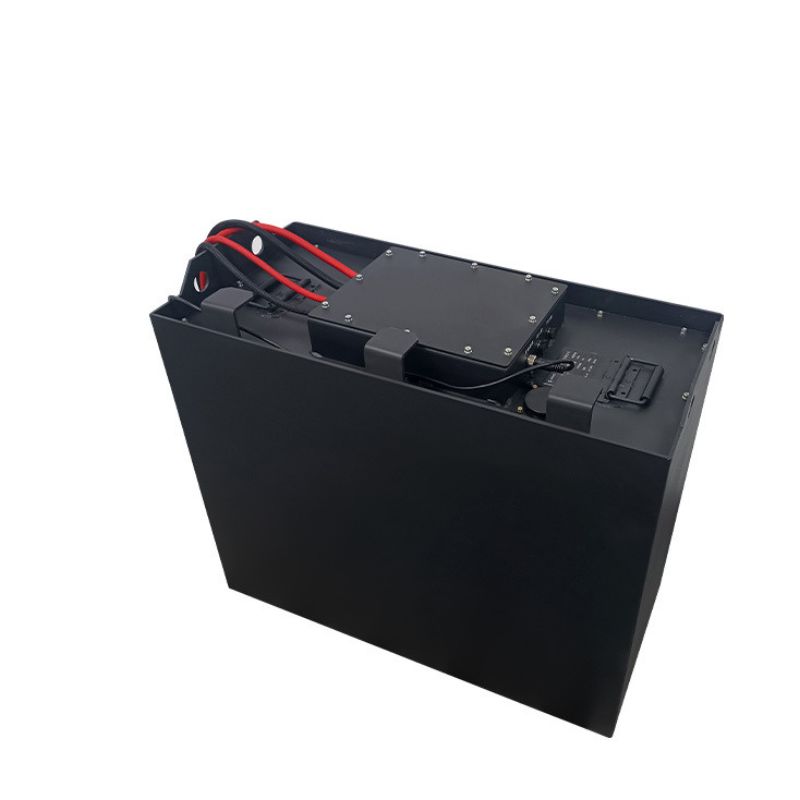

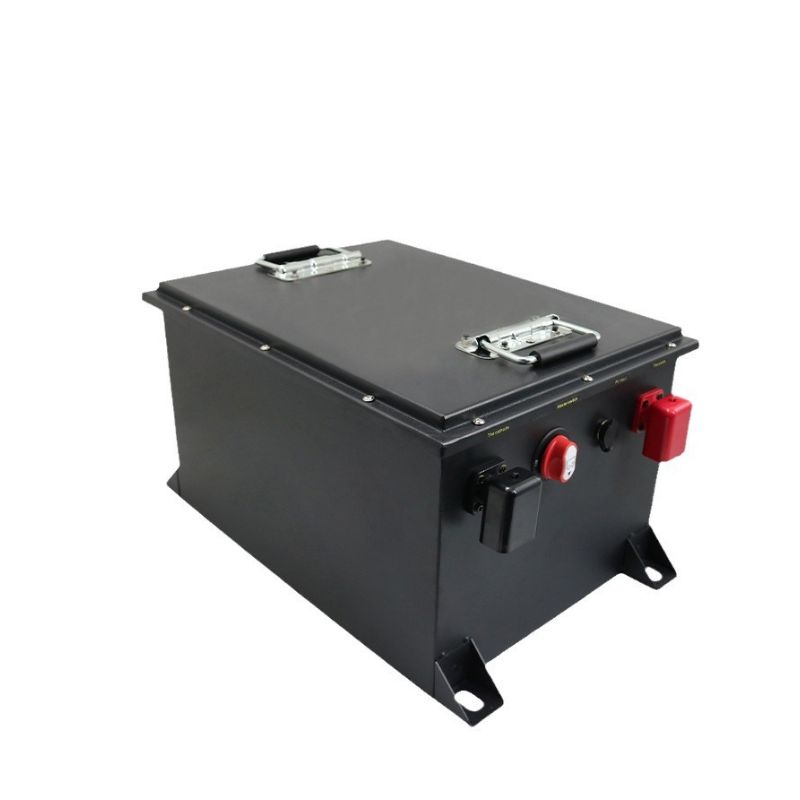

Liteway is the manufacturer and supplier of the 48V LiFePO4 Battery. If you have OEM or wholesale needs, please contact us.
| Tension Nominale | 48/51.2V |
|---|---|
| Nominal Capacity | 30/50/80/100/120Ah, and more |
| Certification | CE |
| Service | Customizable, OEM, ODM |
| Country of Origin | China |
| Tension Nominale | 48V | 48V | 48V | 48V | 48V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 30Ah | 50Ah | 80Ah | 100Ah | 120Ah | 30Ah | 50Ah | 80Ah | 100Ah | 120Ah |
| Combination | 15S1P | 15S1P | 15S1P | 15S1P | 15S1P | 16S1P | 16S1P | 16S1P | 16S1P | 16S1P |
| Charging Voltage | 37.5-54.75V | 37.5-54.75V | 37.5-54.75V | 37.5-54.75V | 37.5-54.75V | 40-58.4V | 40-58.4V | 40-58.4V | 40-58.4V | 40-58.4V |
| Discharge Voltage | 37.5-54.75V | 37.5-54.75V | 37.5-54.75V | 37.5-54.75V | 37.5-54.75V | 40-58.4V | 40-58.4V | 40-58.4V | 40-58.4V | 40-58.4V |
| Charging Current | 6A | 10A | 16A | 20A | 24A | 6A | 10A | 16A | 20A | 24A |
| Discharge Current | 60A | 100A | 160A | 200A | 200A | 60A | 100A | 160A | 200A | 200A |
| Maximum Continuous Discharge Current | 60A | 100A | 160A | 200A | 200A | 60A | 100A | 160A | 200A | 200A |
| Maximum Continuous Charging Current | 15A | 25A | 40A | 50A | 60A | 15A | 25A | 40A | 50A | 60A |
| Weight | 13KG | 22KG | 36KG | 46KG | 58KG | 14KG | 23KG | 37KG | 47KG | 62KG |
| Monthly Self Discharge Rate | 1% | 1% | 1% | 1% | 1% | 1% | 1% | 1% | 1% | 1% |
| Product Size | 293*338*135mm | 398*358*168mm | 372*328*212mm | 498*328*222mm | 950*200*155mm | 293*338*135mm | 398*358*168mm | 372*328*212mm | 498*328*222mm | 950*200*155mm |
| Cycle Times | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 | 5500-6000 |
| Operating Temperature | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ |
· It is composed of some 3.2V LiFePO4 batteries connected in series.
· It has a BMS that can effectively protect and manage the battery.
· Protection system: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, high temperature protection, low temperature protection, circuit breaker protection, voltage balance.
· Class A battery, long cycle times, and service life.
· Perfect replacement for traditional lead-acid batteries, relatively lighter weight, fast charging, pollution-free, safe, and environmentally friendly.
· Large capacity, high energy density, waterproof, high and low temperature resistance.
We have very strict quality control on the 48V LiFePO4 Battery. We have a professional quality inspection team, we have laboratories and many equipments. Our batteries will undergo impact tests, drop tests, vibration test, high and low-temperature cycle tests, etc. These tests ensure that the batteries we produce are of high quality and stable.
At the same time, our quality inspectors will track the entire process of battery production, from material selection, manufacturing process, packaging process, to before shipment, we will have a series of quality inspections.
Our complete and diverse quality inspection process can ensure that there is no problem with the goods you receive.
All the batteries we produce comply with strict international standards. Our batteries have CE, RoHS, and other relevant certifications. Our pursuit and commitment to battery quality constantly drives us to keep improving in this field.
We have a professional team of designers and engineers who can customize batteries according to customer needs. We can not only customize the battery size, color, appearance, parameter specifications, packaging design, brand logo, etc., but we can also design customized solutions for batteries according to different application requirements.
Our 48V LiFePO4 Battery has a wide range of applications. It can be used in solar energy, wind energy, RVs, outdoor camping, electric vehicles, cruise ships, street lighting, and many other fields.
Liteway is a Chinese manufacturer specializing in the manufacture of 48V LiFePO4 Battery for more than 20 years. We not only have our brand products, but also produce batteries for customers all over the world. Our manufacturing capabilities are recognized by many partners.
48V LiFePO4 Battery is one of the models in our LiFePO4 Battery series. If you want to see other models or want to know more about LiFePO4 Battery, please click here.
If you want to cooperate with us and let us manufacture batteries for you, please contact us.
